Intelligent Edge AI Analytics
INT-AIBOX-P-8
High-performance, low-power edge computing device with 7.2 TOPS INT8 AI computing power. Process 8 channels of HD video simultaneously with 40+ built-in AI algorithms.
7.2TOPS
INT8 AI Computing Power
8CH
HD Video Channels
40+
Built-in AI Algorithms
12.5W
Typical Power Consumption
Why INT-AIBOX-P-8
A compact, powerful edge AI device designed for intelligent video surveillance and analytics across diverse environments.
Ultra-High Performance Computing
Powered by domestic TPU CV186AH with 7.2 TOPS INT8 peak computing power. Supports 8-channel H.264/H.265 1080P@30fps hardware encoding and decoding.
Rich Built-in AI Algorithms
40+ pre-loaded algorithms covering smoke/fire detection, safety helmet, face recognition, license plate recognition, intrusion detection, and more. Up to 8 AI tasks per channel.
Versatile Interfaces
Dual Gigabit Ethernet, HDMI 2.0 (4K@60fps), USB 3.0 ×2, RS-485, RS-232, CAN bus, GPIO, SATA 3.0, microSD, and optional 4G/5G & Wi-Fi/BT connectivity.
Industrial-Grade Reliability
Fanless passive cooling, -20°C to +60°C wide operating temperature, IP41 protection rating. Supports desktop, wall-mount, 19" rack, and outdoor enclosure installation.
Docker & AI Frameworks
SophonSDK toolchain with support for Caffe, TensorFlow, PyTorch, ONNX, PaddlePaddle and more. Docker containerization for rapid algorithm deployment.
Secure & Encrypted
Programmable encryption chip for privacy protection. High-capacity eMMC with primary/backup partitions. Fault alarm and protection mechanisms built-in.

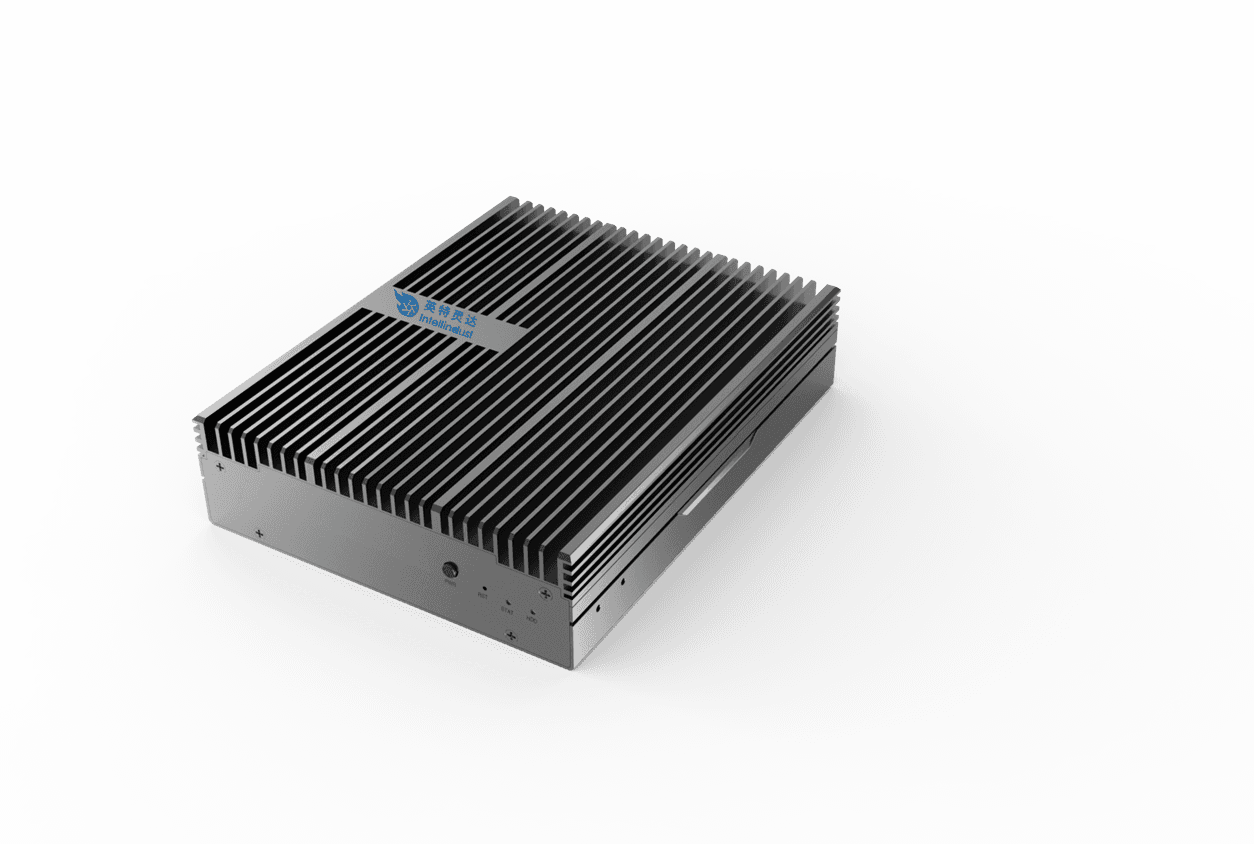

Product Design
219.8mm x 200mm x 46.8mm — only 1.93 kg
Compact fanless design with heatsink fins for passive cooling
Application Scenarios
Ready-to-deploy AI analytics for diverse industry verticals. Custom algorithm combinations available with 40+ algorithms to choose from.

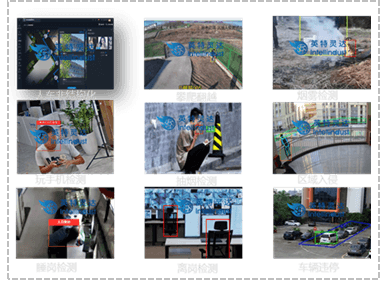

Smart Community
Enhance residential security with people/vehicle monitoring, access control, and perimeter intrusion detection.

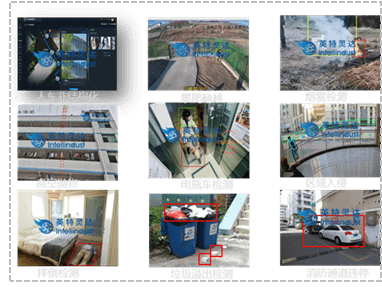

Smart Gas Station
Ensure safety compliance with smoking detection, phone usage alerts, fire hazard monitoring, and more.

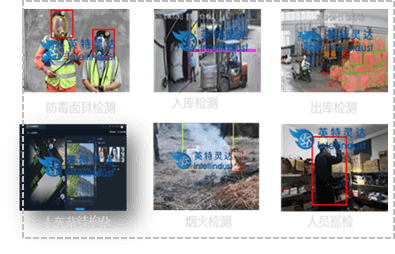

Smart Construction
Construction site safety monitoring with worker PPE compliance, climbing detection, and equipment tracking.

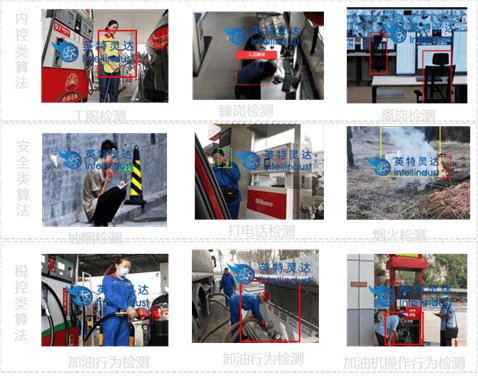

Smart Park / Campus
Protect public areas with perimeter security, people counting, and behavioral analytics.

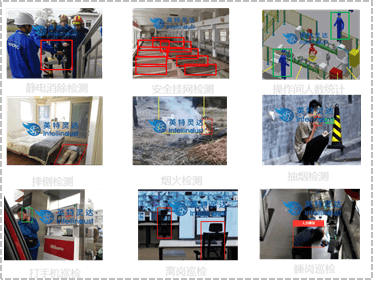

Liquor & Retail Safety
Monitor store operations including customer flow, safety compliance, and theft prevention.

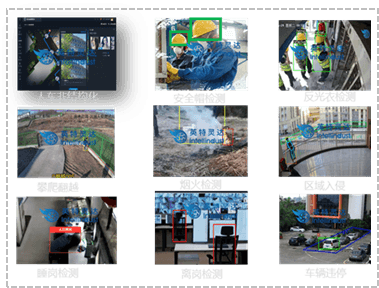

Waste & Environmental
Environmental monitoring for waste management, illegal dumping detection, and sanitation compliance.
Real-World Deployments
See the INT-AIBOX in action across diverse industries with live AI analytics and real-time alert systems.

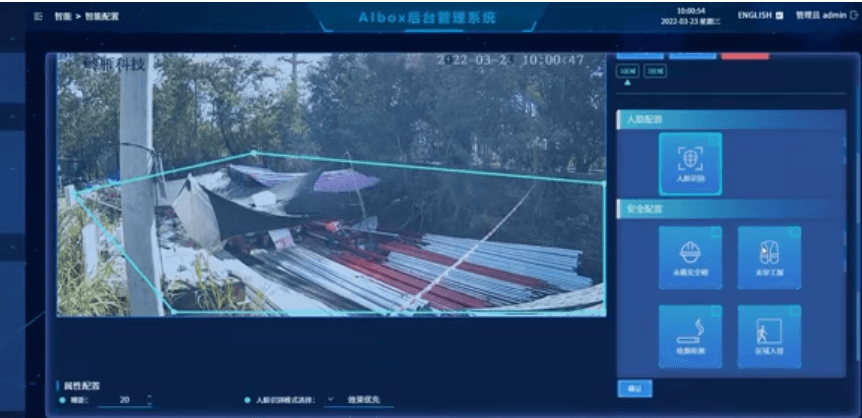

Construction Site Monitoring
AI-powered perimeter detection and safety monitoring at construction sites. Real-time alerts for unauthorized entry and safety violations.
Technical Specifications
Enterprise-grade hardware in a compact, fanless form factor.
Intelligent AI Management Platform
Built-in web-based management platform with visualization dashboard, real-time alerts, and comprehensive device management — all accessible via browser.

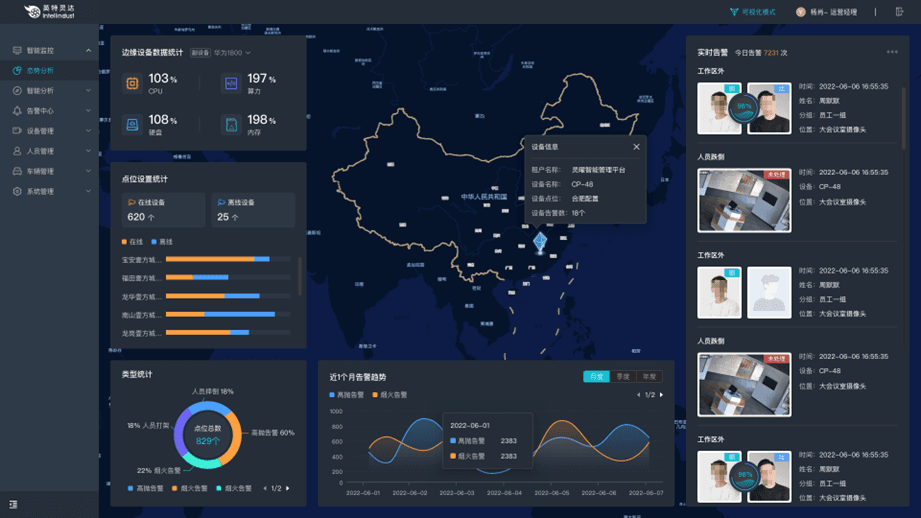

Real-time visualization dashboard with map-based device overview, alert statistics, and AI analytics.

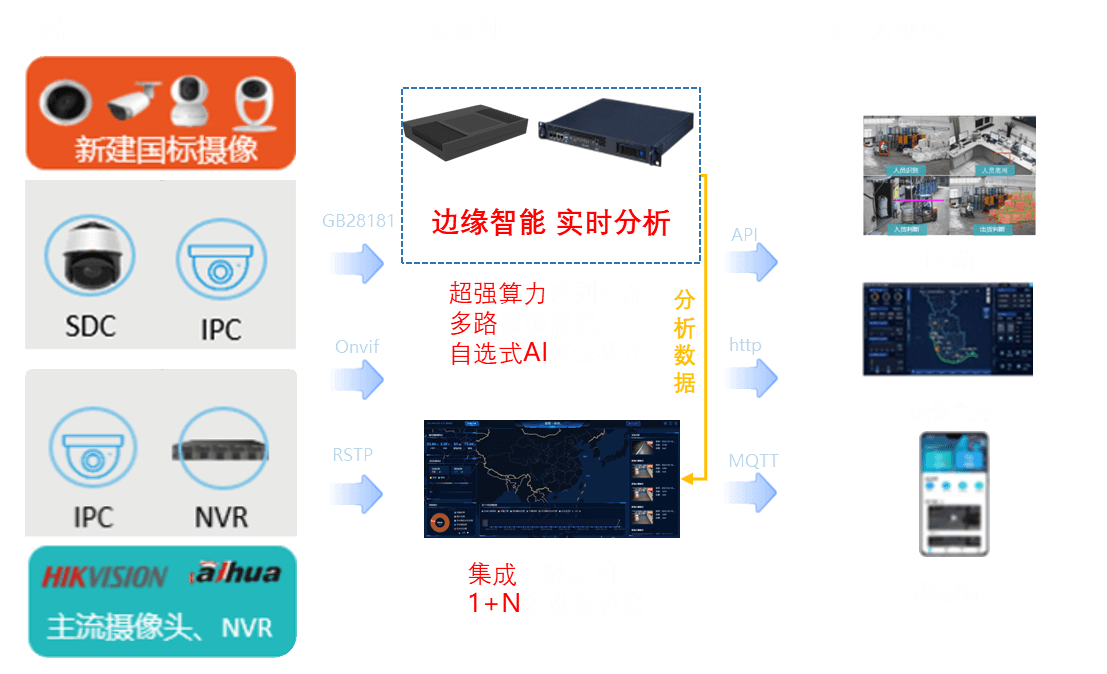

System architecture: Connect existing cameras (SDC, IPC, NVR) to edge AI box for real-time intelligent analysis.
Smart Monitoring
Real-time video preview with map-based device overview, system resource monitoring, and alert statistics.
Visualization Mode
Full-screen data visualization with live AI video analysis, device status, and alarm trends.
Alert Center
Centralized alarm management for behavior analysis, vehicle alerts, and personnel alerts with evidence.
Intelligent Analysis
Structured data for personnel and vehicle attributes with search and filtering capabilities.
Device Management
Cascade multiple edge boxes, connect smart cameras, legacy cameras, and IoT devices.
System Management
Network configuration, algorithm updates, platform upgrades, and maintenance tools.
Northbound API Support
Rich northbound APIs to integrate with your existing business platforms and upper-layer applications.
Ready to Deploy Edge AI?
Contact our sales team for pricing, bulk orders, or custom algorithm requirements. We offer exclusive global distribution through Sienovo.
